Moving and Storage bodies are designed to give the mover the most affordable fully engineered moving and storage body on the market today. Whether you’re customer is moving across town or across the country we have a body to meet your needs.
| Body Lengths | 12’, 14’, 16’, 18, 20’, 22’, 24’, 26’, 28’, 30’ |
|---|---|
| Body Widths | Exterior 96” (std.), 102” |
| Heights Interior (dimensions measured from top of floor to bottom of roof bows) | 79”, 85”, 91”, 103”, 109” |
| Lights | One piece aluminum roof rail with recessed Clearance lights meeting Federal standards |
| Roof Assembly | .032 one piece alumimum sheet with anti snag roof bows on 24” c/l, bowed to prevent water from pooling |
| Sidewalls and front | Aluminum; 040 Prepainted white aluminum panels solid riveted to steel double logistics posts on 24” c/l FRP Gelcoat white exterior, seamless fiberglass white interior. Fiberglass Reinforced Plywood _” exterior panels |

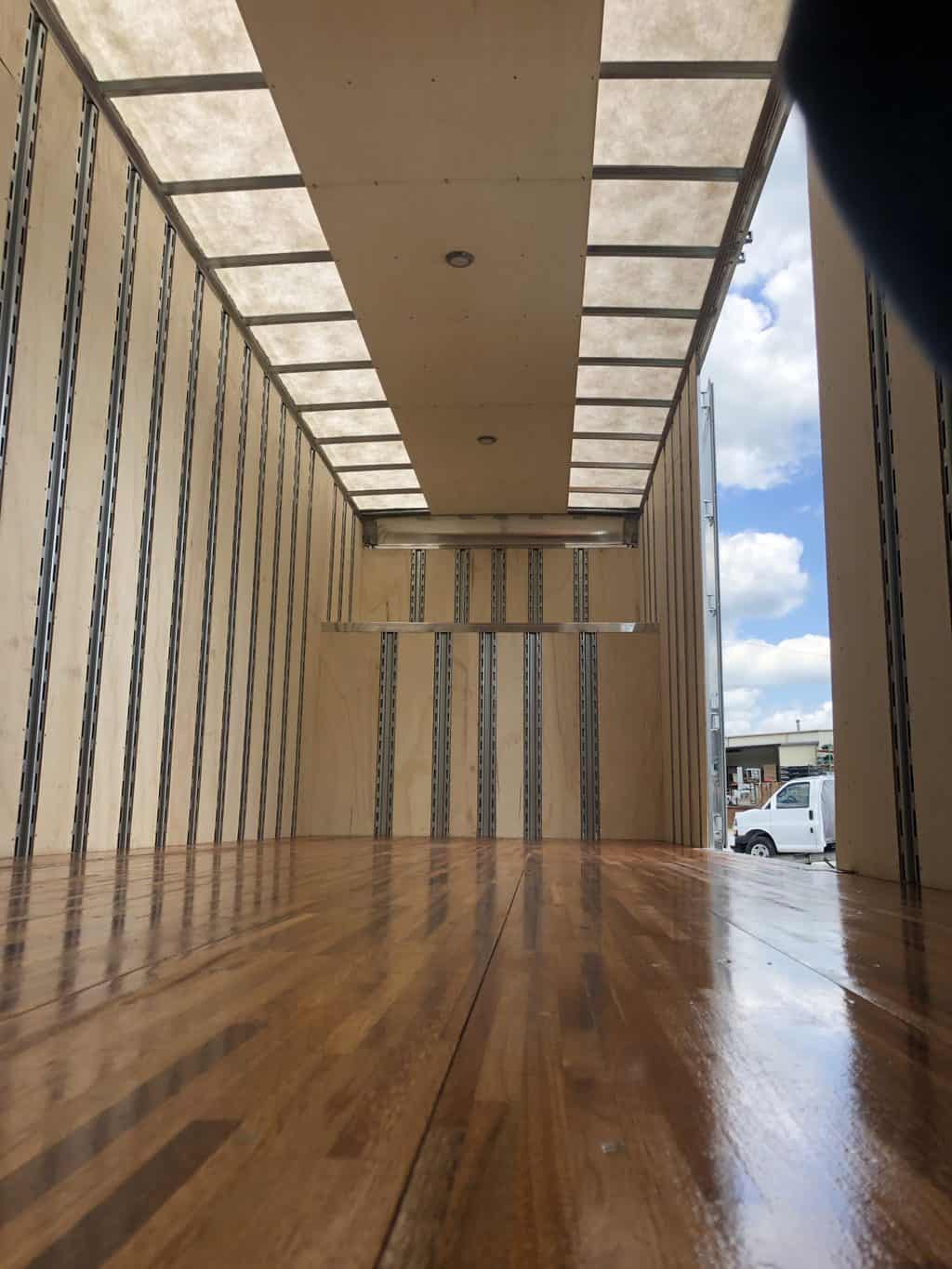

| Flooring | 1-1/8” Laminated hardwood, floor screws filled, sanded and varnished |
| Sub floor | 4” Steel “C” channel longsills, 3” I-Beam crossmembers on 12” c/l |
| Rear Frame | Industry standard 12ga perimeter with a 10 ga sill, galvanealed, painted white. Two (2) grab handles, one curbside, one roadside. |
| Rear Doors | Two (2) panel full opening swing doors w/2 bar locks |

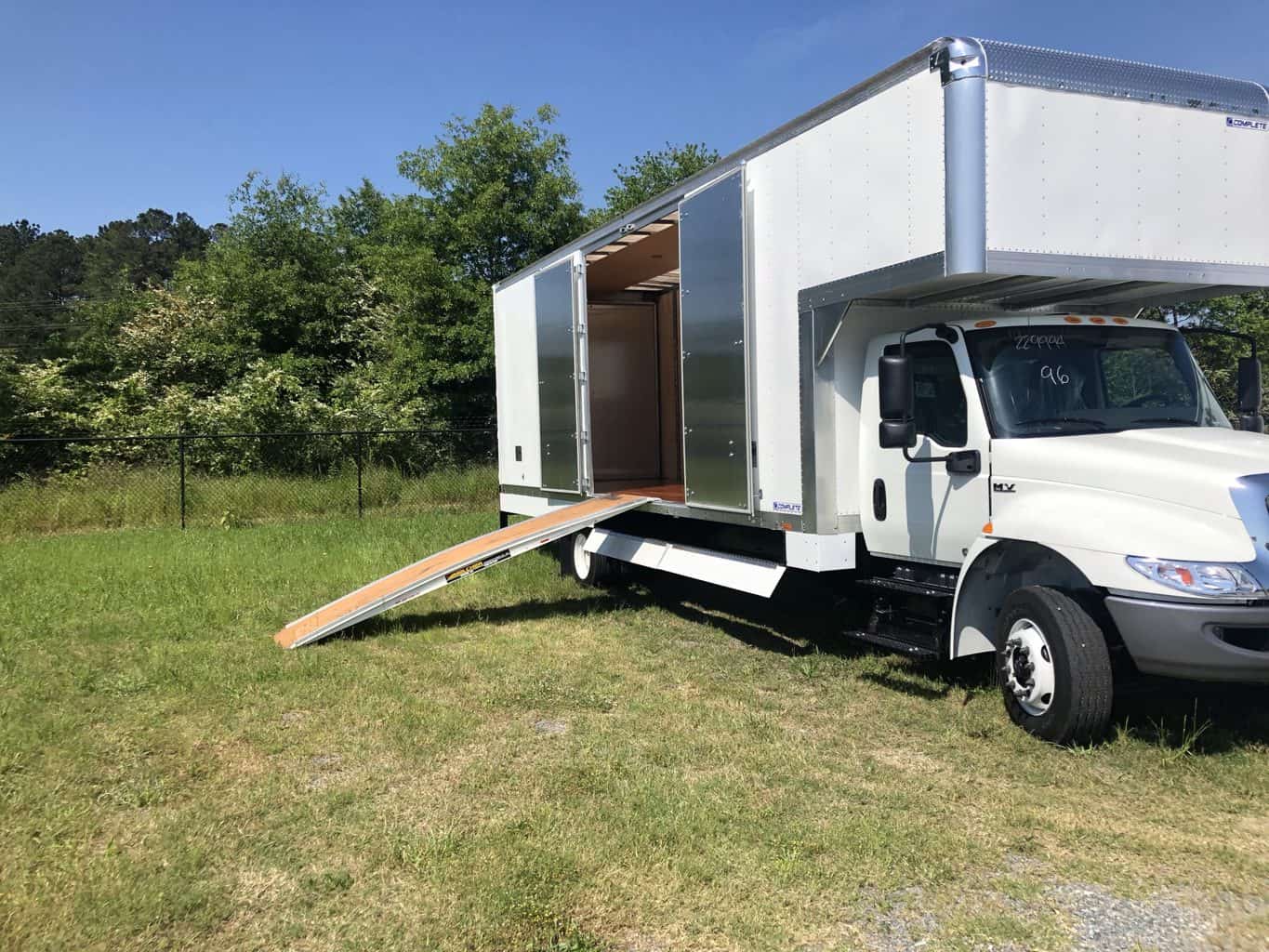

| Side Doors | One – Two (2) panel curbside door 72” opening, One – Single (1) panel roadside door 48” opening |
| Front End Assembly | Aerodynamic design with Polished Cast Aluminum Corner caps, __” Stainless top radius and __” Extruded aluminum front corner radius |
