Heavy Duty Refrigerated – Aluminum

Heavy Duty Refrigerated – Aluminum



  • Designed to carry temperature sensitive products
  • Polyurethane foam insulation injected in walls, ceilings and floors to maximize thermal efficiency
  • Interior lining consists of seamless fiberglass walls and ceilings for easy maintenance
  • Floors welded watertight – flat or hat section flooring
  • Direct drive/diesel engine refrigeration options available from both Carrier and Thermo King
  • Available for cutaway chassis.





SKU: N/A Category:

Description

Our Fresh Max Heavy Duty is available in lengths from 10’ – 28’ and is ideal for pallet or hand loading. They are ideal for multi stop distribution of both fresh and frozen products that require specific temperature management.

Download PDF Brochures:
Fresh Max – Heavy Duty

Additional information

Body Length

10’, 14’, 16’, 18’, 20’, 22’, 24’, 26’, 28’, 30’

Body Widths

Exterior 96” (89.5 I.D. w/standard insulation), 102” (95.5 I.D. w/standard insulation)

Heights Interior (dimensions measured from top of floor to kemlite lined ceiling)

74.5”, 80.5”, 86.5”, 92.5”, 98.5”

Lights

Standard lighting package per FMVSS 108

Roof Assembly

.032 one piece alumimum sheet with anti snag roof bows on 24” c/l, bowed to prevent water from pooling

Sidewalls and front

Aluminum; 040 Prepainted white aluminum panels solid riveted to steel “Z” posts on 16” c/l with .090 fiberglass lining

Insulation

3” polyurethane foamed in place, 3” sides, ceiling, 4” floor and front wall

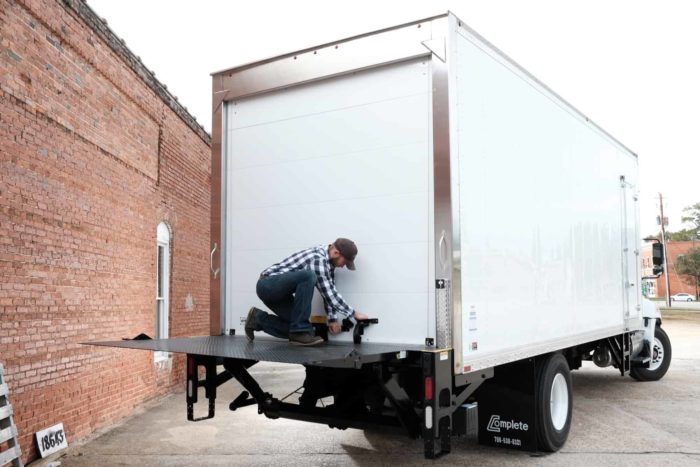

Rear Door

Two (2) panel full opening swing with 3” polyurethane

Flooring

Extruded aluminum “Hat” section floor with smooth surface with 2 kazoos in front corners

Scuff

12” Extruded aluminum scuff sides and front

Subpan

One piece seamless fiberglass subpan

Sub floor

4” Steel “C” channel longsills, 3” I-Beam crossmembers on 12” c/l

Rear Frame

Industry standard 12ga perimeter with a 10 ga sill, galvanealed, painted white. Two (2) grab handles, one curbside, one roadside.

Front End Assembly

Aerodynamic design with Polished Cast Aluminum Corner caps, __” Stainless top radius and __” Extruded aluminum front corner radius
