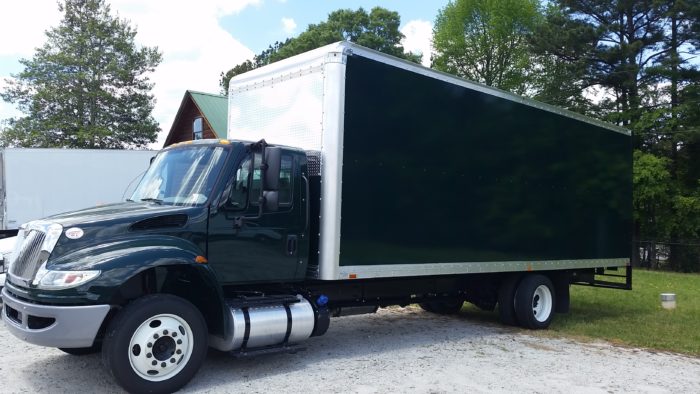

Freight Max bodies are available in sizes from 10’ – 30’. Bodies are built to fit a wide variety of chassis with enough options to meet any customer requirement. Freight Max vans are built using the same exacting standards used to manufacture all Complete Truck Bodies.
Download PDF Brochures:
Dry Freight Brochure – Freight Max
| Body Lengths | 12’, 14’, 16’, 18, 20’, 22’, 24’, 26’, 28’, 30’ |
|---|---|
| Body Widths | Exterior 96” (std.), 102” |
| Heights Interior (dimensions measured from top of floor to bottom of roof bows) | 79”, 85”, 91”, 103”, 109” |
| Lights | One piece aluminum roof rail with recessed c/l, bowed to prevent water from pooling |
| Roof Assembly | .032 one piece alumimum sheet with anti snag roof bows on 24” c/l, bowed to prevent water from pooling |
| Sidewalls and front | Aluminum; 040 Prepainted white aluminum panels solid riveted to steel “Z” posts on 16” c/l FRP Gelcoat white exterior, seamless fiberglass white interior. Fiberglass Reinforced Plywood _” exterior panels |
| Flooring | 1-1/8” Laminated hardwood |
| Sub floor | 4” Steel “C” channel longsills, 3” I-Beam crossmembers on 12” c/l |
| Rear Frame | Industry standard 12ga perimeter with a 10 ga sill, galvanealed, painted white. Two (2) grab handles, one curbside, one roadside. |
| Front End Assembly | Aerodynamic design with Polished Cast Aluminum Corner caps, __” Stainless top radius and ___” Extruded aluminum front corner radius |
